Adding Code Mappings as Release Objects

You can add code mappings as release objects to a release and specify migration environment and date.

To add code mappings as release objects to a release, follow these steps:

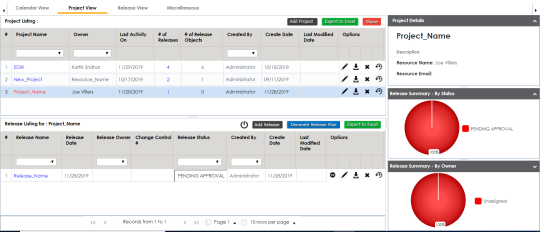

  1. Under the Project View tab, click the required project.

    2. The release listing of the required project appears.

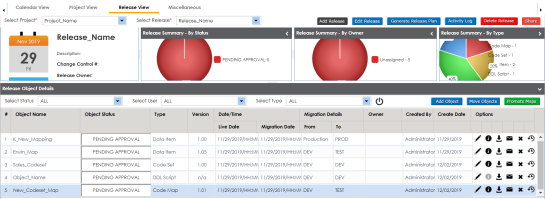

  2. Click the required <Release_Name>.

    3. The Release View page appears showing the release object details.

  3. Click Add Object.

    4. The Migration Object Entry Form page appears.

  4. In Select Object Types, select Add Code Mappings.

    5. The following page appears.

  5. Select the required code mappings and click Next.

    6. The Migration Object Entry Form page reappears.

  6. Enter appropriate values in the fields. Fields marked with a red asterisk are mandatory. Refer to the following table for field descriptions.

    7. Field Name

    Description

    Object Description

    Specifies the description about the release object being added to the release.

    For example: The release object is a code map under the EDW category.

    Live Date / Time

    Specifies the live date and time of the release object.

    For example, 04/03/2020 9:30 AM.

    Live Date is autopopulated and it is same as the release date.

    Enter the Live Time in HH : MM format.

    Migration Date / Time

    Specifies the migration date and time of the release object from a release environment.

    For example, 04/30/2020 9:30 PM.

    Use to enter the migration date. Enter the migration time in the HH : MM format.

    The Migration Date cannot exceed the Live Date.

    Migration From

    Specifies the current release environment of the release object.

    For example, DEV.

    You can create release environments in the Release Manager Settings.

    DSN

    Specifies the DSN name from where the release object is being migrated.

    For example, ErwinDIS931.

    IP Address

    Specifies the IP Address from where the release object is being migrated.

    For example, 10.32.445.21

    Migration To

    Specifies the release environment to which the release object is being migrated.

    For example, TEST.

    You can create release environments in the Release Manager Settings.

    DSN

    Specifies the DSN name to which the release object is being migrated.

    For example, ErwinDIS932.

    IP Address

    Specifies the IP address to which the release object is being migrated.

    For example, 10.31.447.22

    Owner / Assignee

    Specifies the User ID of the release object's owner.

    For example, jdoe.

    The option list appears based on the users created in the Resource Manager. For more information on creating users, refer to the Creating Users and Assigning Roles topic.
  7. Click Save.

    8. The selected code mappings are added as release objects to the release.

  8. Use the following options:
    Edit ()
    To edit, the release object, click .
    You can update the release object status only by editing a release object.
    Information ()
    To view the mapping information, click .

    Download ()

    To download the release object details, click .
    Email ()
    To send email notification about the release object click .
    Delete ()
    To delete the release object, click .
